A fire protection wall is an essential part of structural fire protection and serves as a physical barrier to prevent the spread of fire and smoke in buildings. These specially constructed walls are designed to withstand a fire for a defined period of time. This creates valuable time for evacuation and firefighting.
UL U336Area Separation Wall – Wood Stud (Non-Load-Bearing) |
Fire Rating 2 hours |
System Thickness 6.75 in. |
STC 54-58 |
Assembly Details
Gypsum Panel: 1 layer 1/2″ [12.7 mm] Sheetrock® Ultralight Gypsum Panel
Gypsum Panel: 1 layer 1/2″ [12.7 mm] Sheetrock® Ultralight Gypsum Panel
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 24″ [610 mm] O.C.
Insulation: 1 layer 3″ [76 mm] Fiberglass insulation
Air Space: 1 layer 3/4″ [19 mm] air space
Steel Studs: 1 layer 2″ [51 mm] H-studs, 24″ [610 mm] O.C.
Steel Studs: 1 layer 2″ [51 mm] H-studs, 24″ [610 mm] O.C.
Gypsum Panel: 1 layer 1″ [25.4 mm] Sheetrock® Gypsum Liner Panels (UL Type SLX)
Gypsum Panel: 1 layer 1″ [25.4 mm] Sheetrock® Gypsum Liner Panels (UL Type SLX)
Gypsum Panel: 1 layer 1″ [25.4 mm] Sheetrock® Gypsum Liner Panels (UL Type SLX)

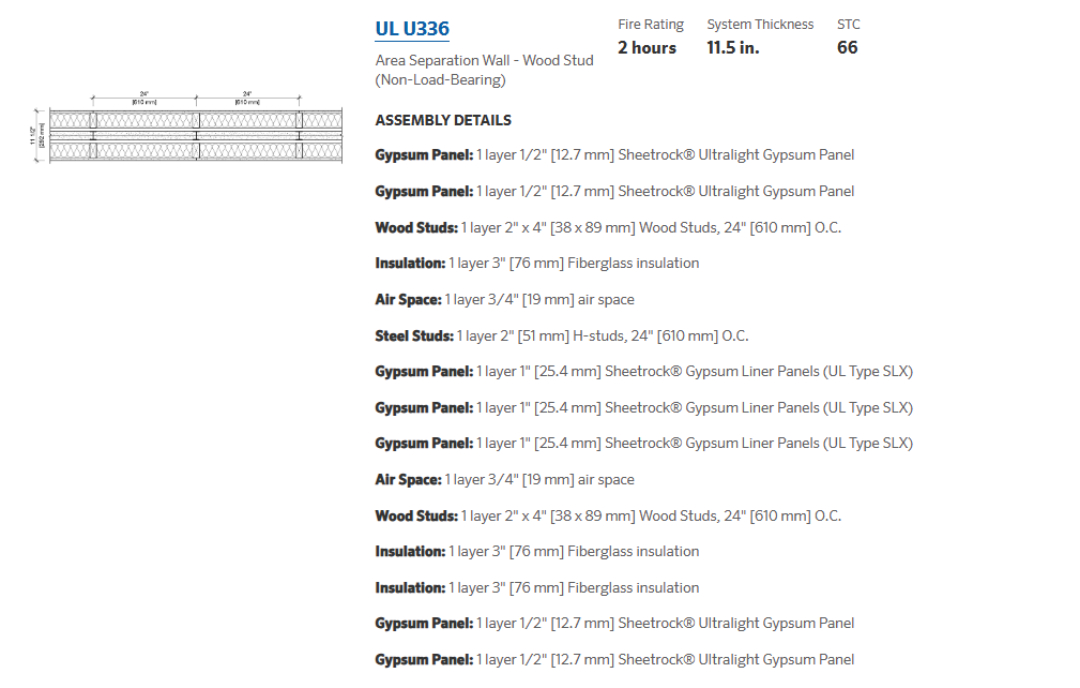

UL U336Area Separation Wall – Wood Stud (Non-Load-Bearing) |
Fire Rating 2 hours |
System Thickness 11.5 in. |
STC 66 |
Assembly Details
Gypsum Panel: 1 layer 1/2″ [12.7 mm] Sheetrock® Ultralight Gypsum Panel
Gypsum Panel: 1 layer 1/2″ [12.7 mm] Sheetrock® Ultralight Gypsum Panel
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 24″ [610 mm] O.C.
Insulation: 1 layer 3″ [76 mm] Fiberglass insulation
Air Space: 1 layer 3/4″ [19 mm] air space
Steel Studs: 1 layer 2″ [51 mm] H-studs, 24″ [610 mm] O.C.
Gypsum Panel: 1 layer 1″ [25.4 mm] Sheetrock® Gypsum Liner Panels (UL Type SLX)
Gypsum Panel: 1 layer 1″ [25.4 mm] Sheetrock® Gypsum Liner Panels (UL Type SLX)
Gypsum Panel: 1 layer 1″ [25.4 mm] Sheetrock® Gypsum Liner Panels (UL Type SLX)
Air Space: 1 layer 3/4″ [19 mm] air space
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 24″ [610 mm] O.C.
Insulation: 1 layer 3″ [76 mm] Fiberglass insulation
Insulation: 1 layer 3″ [76 mm] Fiberglass insulation
Gypsum Panel: 1 layer 1/2″ [12.7 mm] Sheetrock® Ultralight Gypsum Panel
Gypsum Panel: 1 layer 1/2″ [12.7 mm] Sheetrock® Ultralight Gypsum Panel

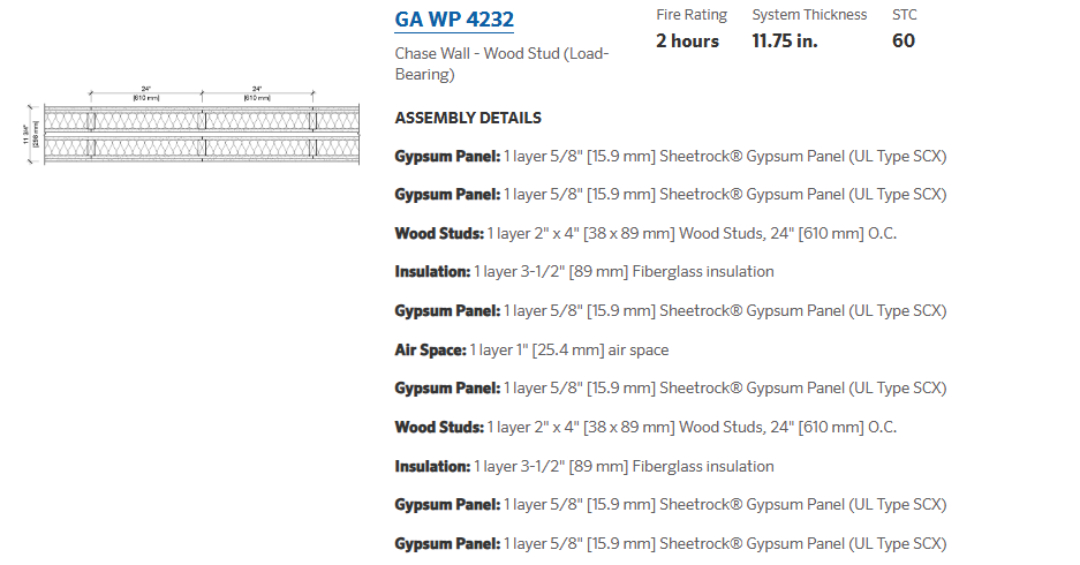

GA WP 4232Chase Wall – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 11.75 in. |
STC 66 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 24″ [610 mm] O.C.
Insulation: 1 layer 3-1/2″ [89 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Air Space: 1 layer 1″ [25.4 mm] air space
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 24″ [610 mm] O.C.
Insulation: 1 layer 3-1/2″ [89 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
GA WP 5530Chase Wall – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 8 in. |
STC 49 |
Assembly Details

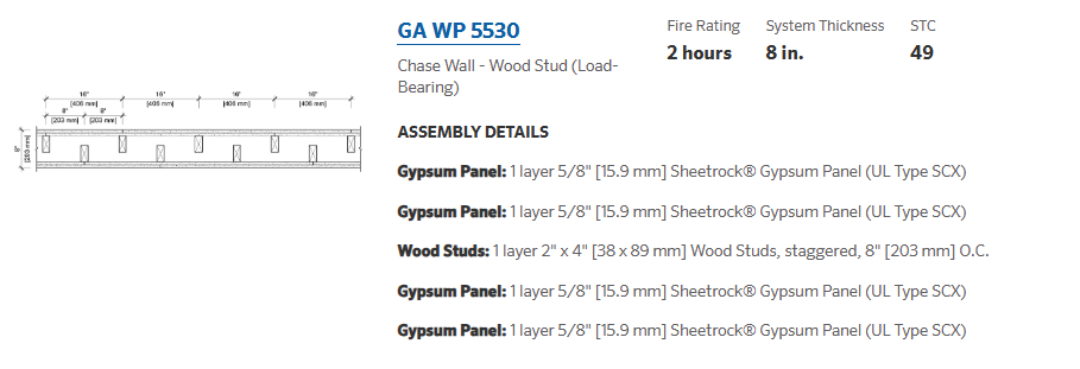

Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, staggered, 8″ [203 mm] O.C.
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)

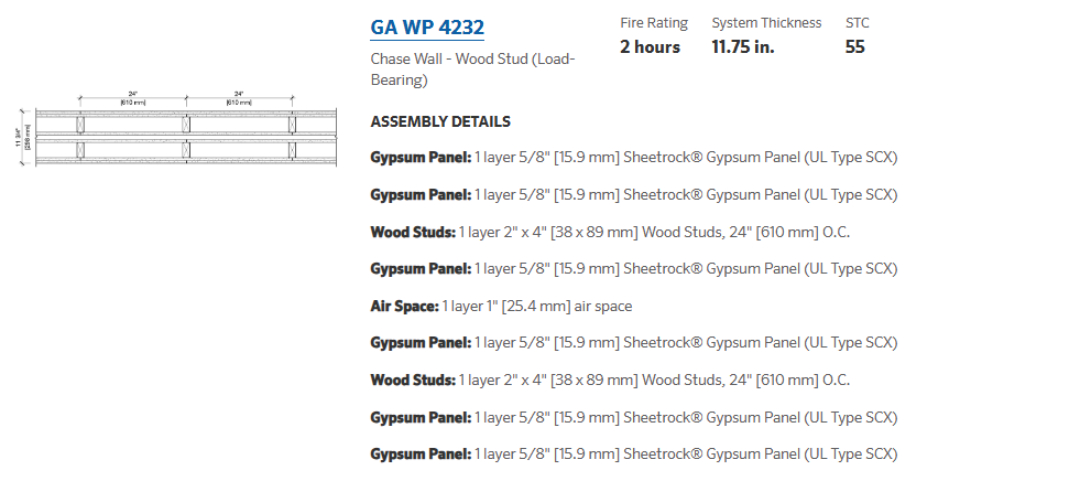

GA WP 4232Chase Wall – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 11.75 in. |
STC 55 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 24″ [610 mm] O.C.
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Air Space: 1 layer 1″ [25.4 mm] air space
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 24″ [610 mm] O.C.
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)

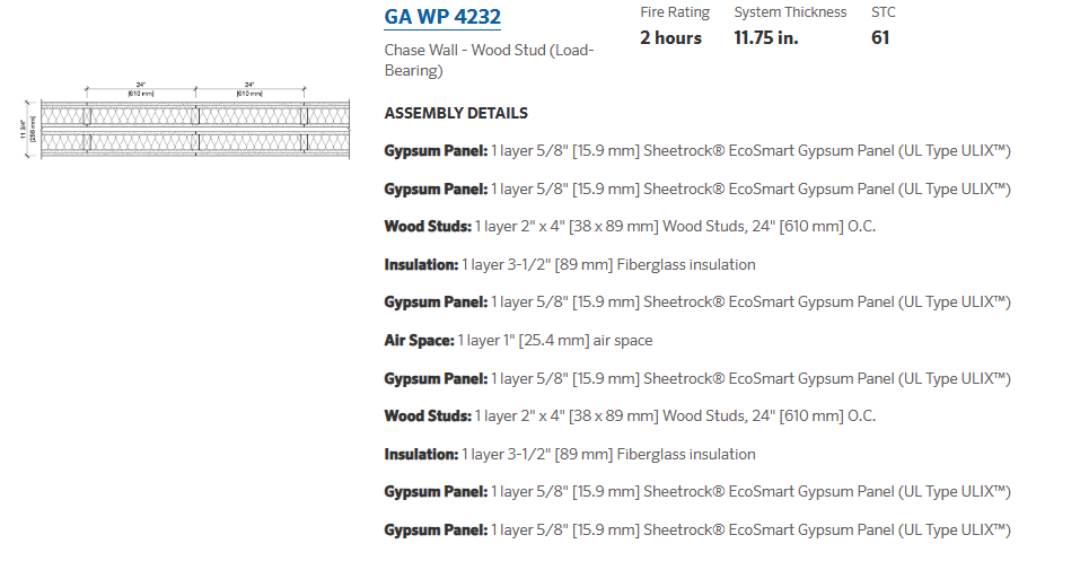

GA WP 4232Chase Wall – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 11.75 in. |
STC 61 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 24″ [610 mm] O.C.
Insulation: 1 layer 3-1/2″ [89 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Air Space: 1 layer 1″ [25.4 mm] air space
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 24″ [610 mm] O.C.
Insulation: 1 layer 3-1/2″ [89 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)

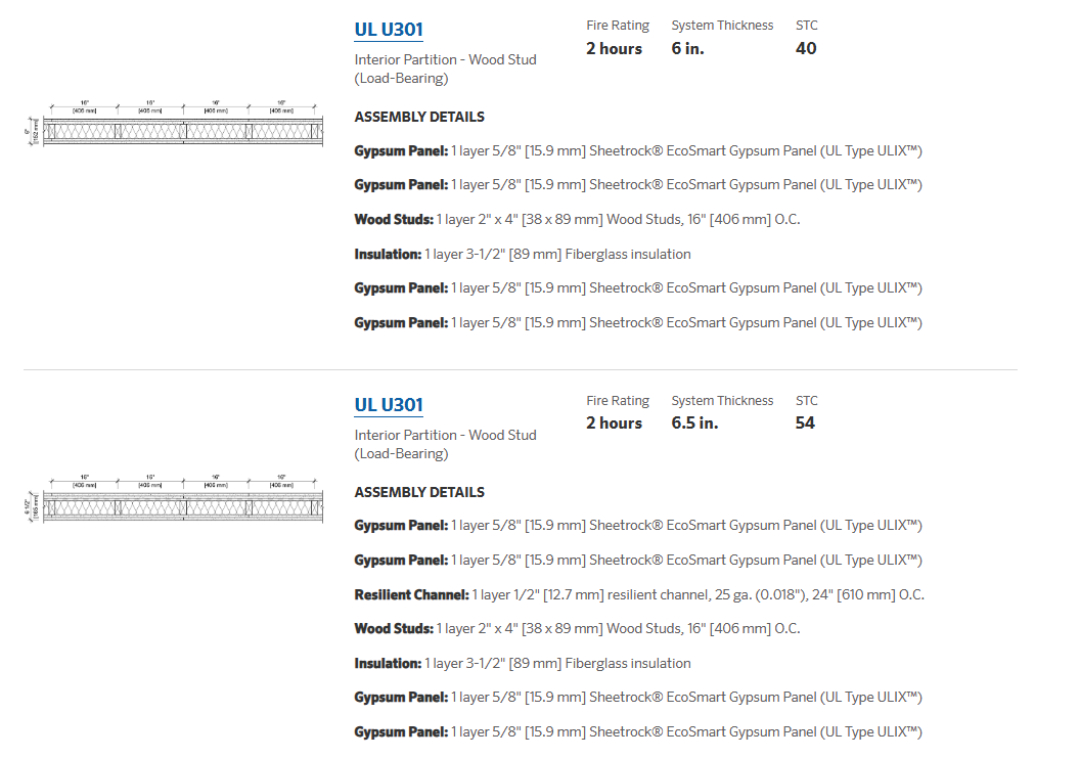

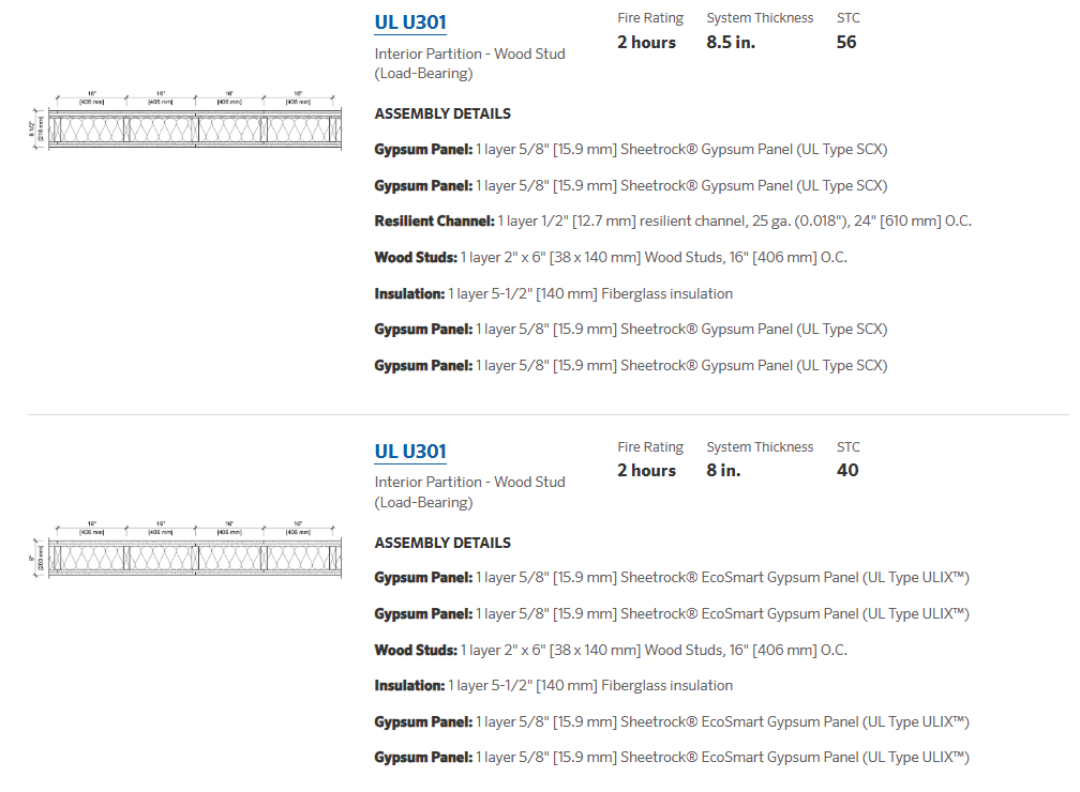

UL U301Interior Partition – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 6 in. |
STC 40 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 16″ [406 mm] O.C.
Insulation: 1 layer 3-1/2″ [89 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
UL U301Interior Partition – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 6.5 in. |
STC 54 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Resilient Channel: 1 layer 1/2″ [12.7 mm] resilient channel, 25 ga. (0.018″), 24″ [610 mm] O.C.
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 16″ [406 mm] O.C.
Insulation: 1 layer 3-1/2″ [89 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)

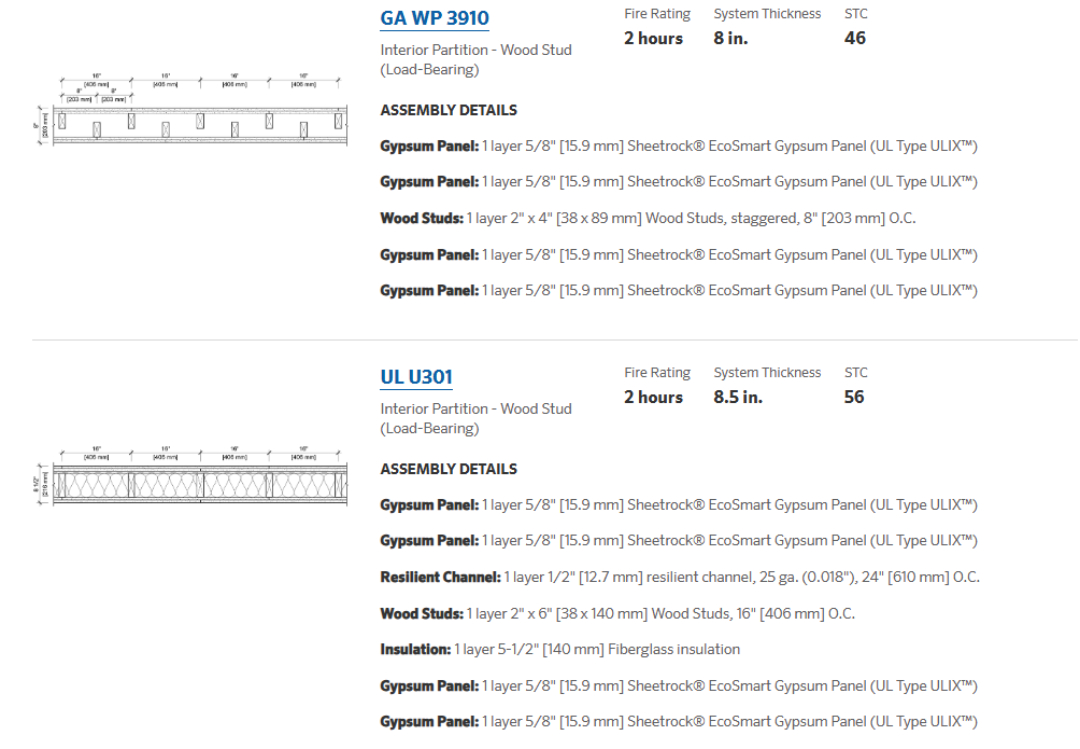

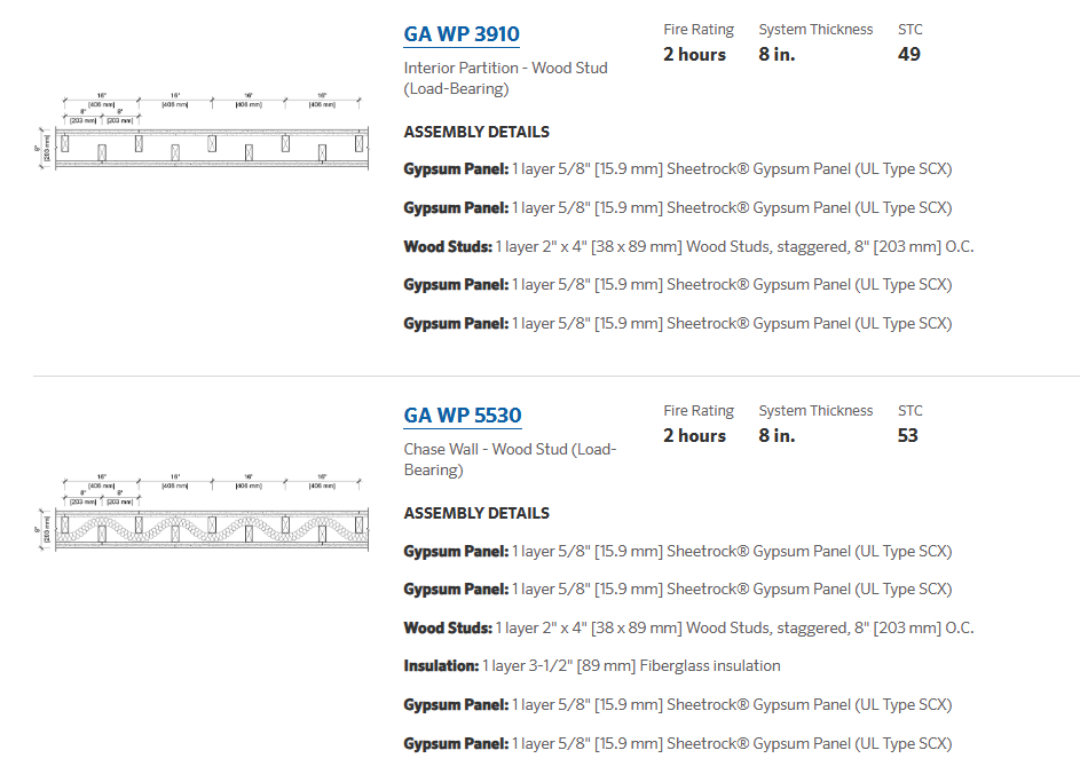

GA WP 3910Interior Partition – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 8 in. |
STC 46 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, staggered, 8″ [203 mm] O.C.
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
UL U301Interior Partition – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 8.5 in. |
STC 56 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Resilient Channel: 1 layer 1/2″ [12.7 mm] resilient channel, 25 ga. (0.018″), 24″ [610 mm] O.C.
Wood Studs: 1 layer 2″ x 6″ [38 x 140 mm] Wood Studs, 16″ [406 mm] O.C.
Insulation: 1 layer 5-1/2″ [140 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
UL U301Interior Partition – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 8.5 in. |
STC 56 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Resilient Channel: 1 layer 1/2″ [12.7 mm] resilient channel, 25 ga. (0.018″), 24″ [610 mm] O.C.
Wood Studs: 1 layer 2″ x 6″ [38 x 140 mm] Wood Studs, 16″ [406 mm] O.C.
Insulation: 1 layer 5-1/2″ [140 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
UL U301Interior Partition – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 8 in. |
STC 40 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Wood Studs: 1 layer 2″ x 6″ [38 x 140 mm] Wood Studs, 16″ [406 mm] O.C.
Insulation: 1 layer 5-1/2″ [140 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)

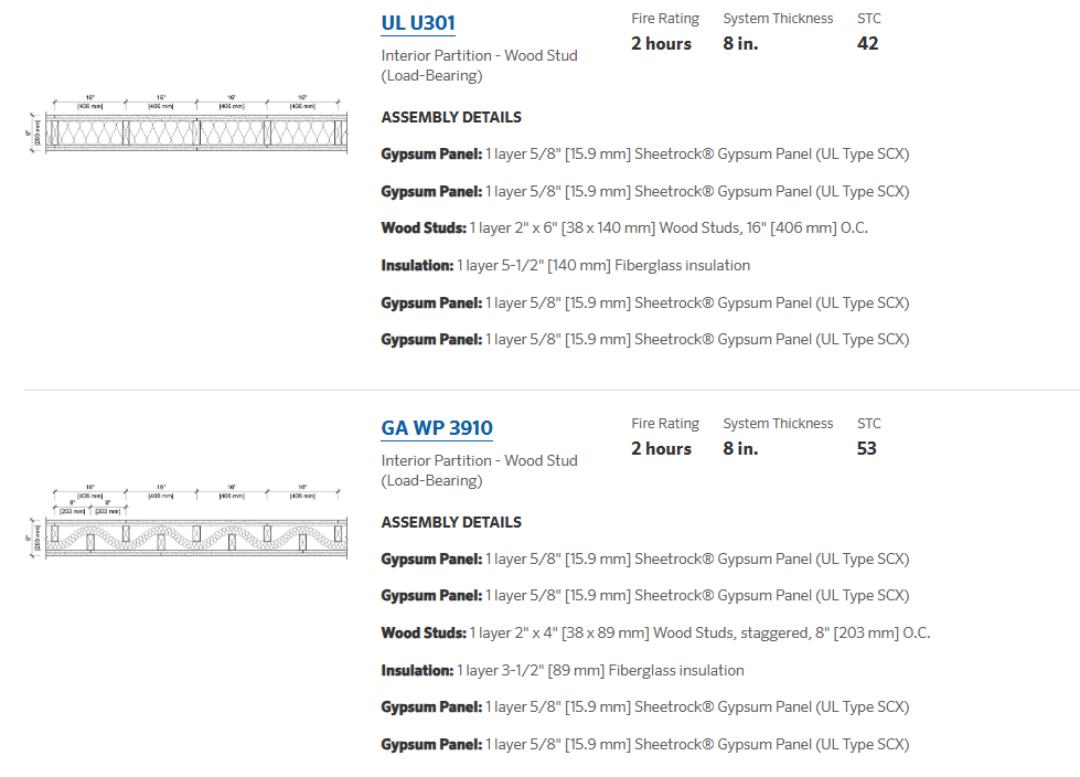

UL U301Interior Partition – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 8 in. |
STC 42 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Wood Studs: 1 layer 2″ x 6″ [38 x 140 mm] Wood Studs, 16″ [406 mm] O.C.
Insulation: 1 layer 5-1/2″ [140 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
GA WP 3910Interior Partition – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 8 in. |
STC 53 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, staggered, 8″ [203 mm] O.C.
Insulation: 1 layer 3-1/2″ [89 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
GA WP 3910Interior Partition – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 8 in. |
STC 49 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, staggered, 8″ [203 mm] O.C.
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
GA WP 5530Chase Wall – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 8 in. |
STC 53 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, staggered, 8″ [203 mm] O.C.
Insulation: 1 layer 3-1/2″ [89 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® Gypsum Panel (UL Type SCX)

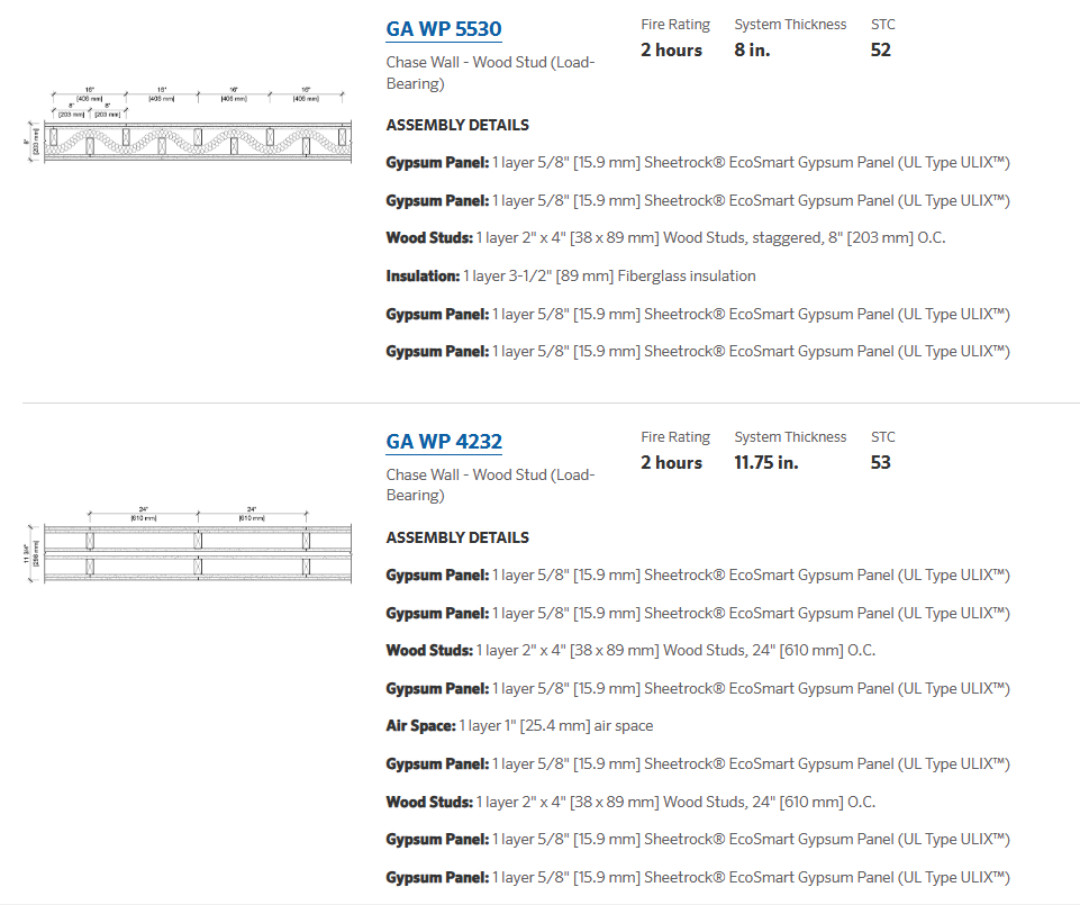

GA WP 5530Chase Wall – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 8 in. |
STC 52 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, staggered, 8″ [203 mm] O.C.
Insulation: 1 layer 3-1/2″ [89 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
GA WP 4232Chase Wall – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 11.75 in. |
STC 53 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 24″ [610 mm] O.C.
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Air Space: 1 layer 1″ [25.4 mm] air space
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, 24″ [610 mm] O.C.
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
GA WP 5530Chase Wall – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 8 in. |
STC 46 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, staggered, 8″ [203 mm] O.C.
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
GA WP 3910Interior Partition – Wood Stud (Load-Bearing) |
Fire Rating 2 hours |
System Thickness 8 in. |
STC 52 |
Assembly Details
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Wood Studs: 1 layer 2″ x 4″ [38 x 89 mm] Wood Studs, staggered, 8″ [203 mm] O.C.
Insulation: 1 layer 3-1/2″ [89 mm] Fiberglass insulation
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Gypsum Panel: 1 layer 5/8″ [15.9 mm] Sheetrock® EcoSmart Gypsum Panel (UL Type ULIX™)
Reference : https://www.usg.com/content/usgcom/en/design-studio/wall-assemblies.html
